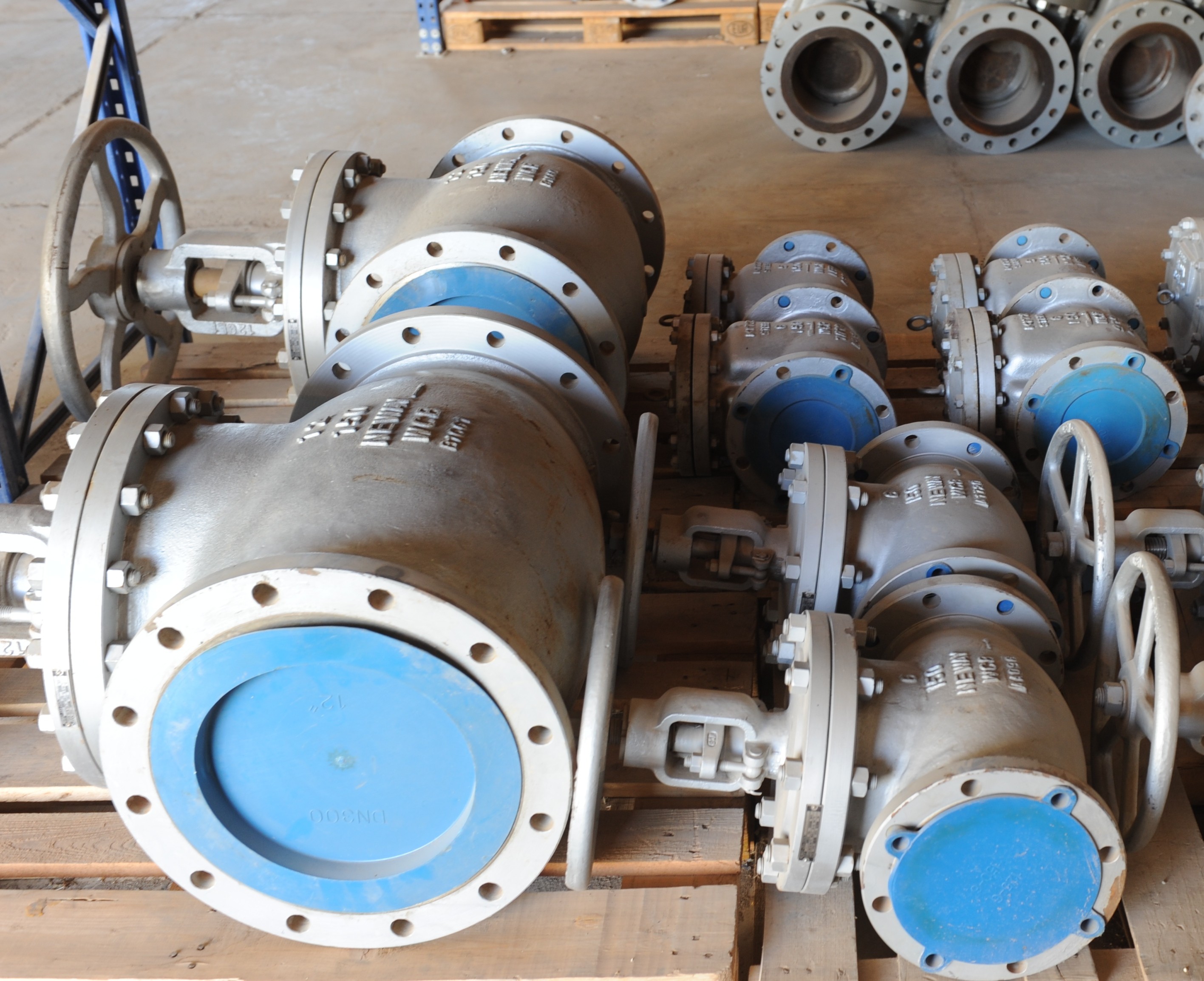

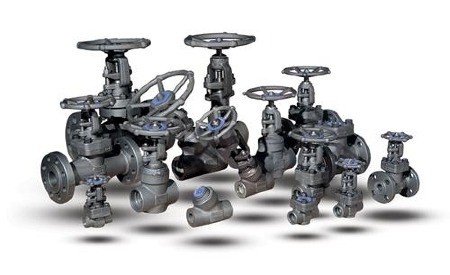

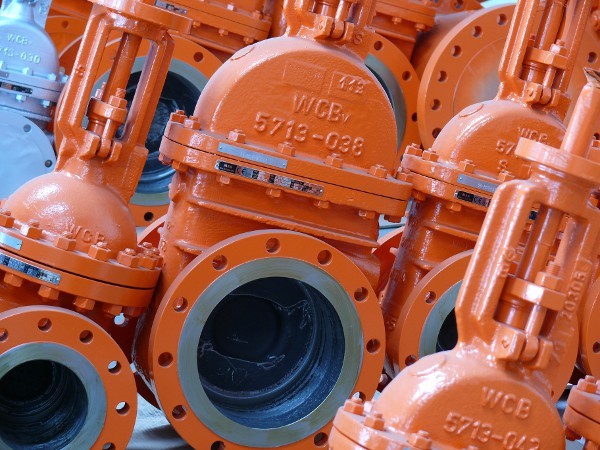

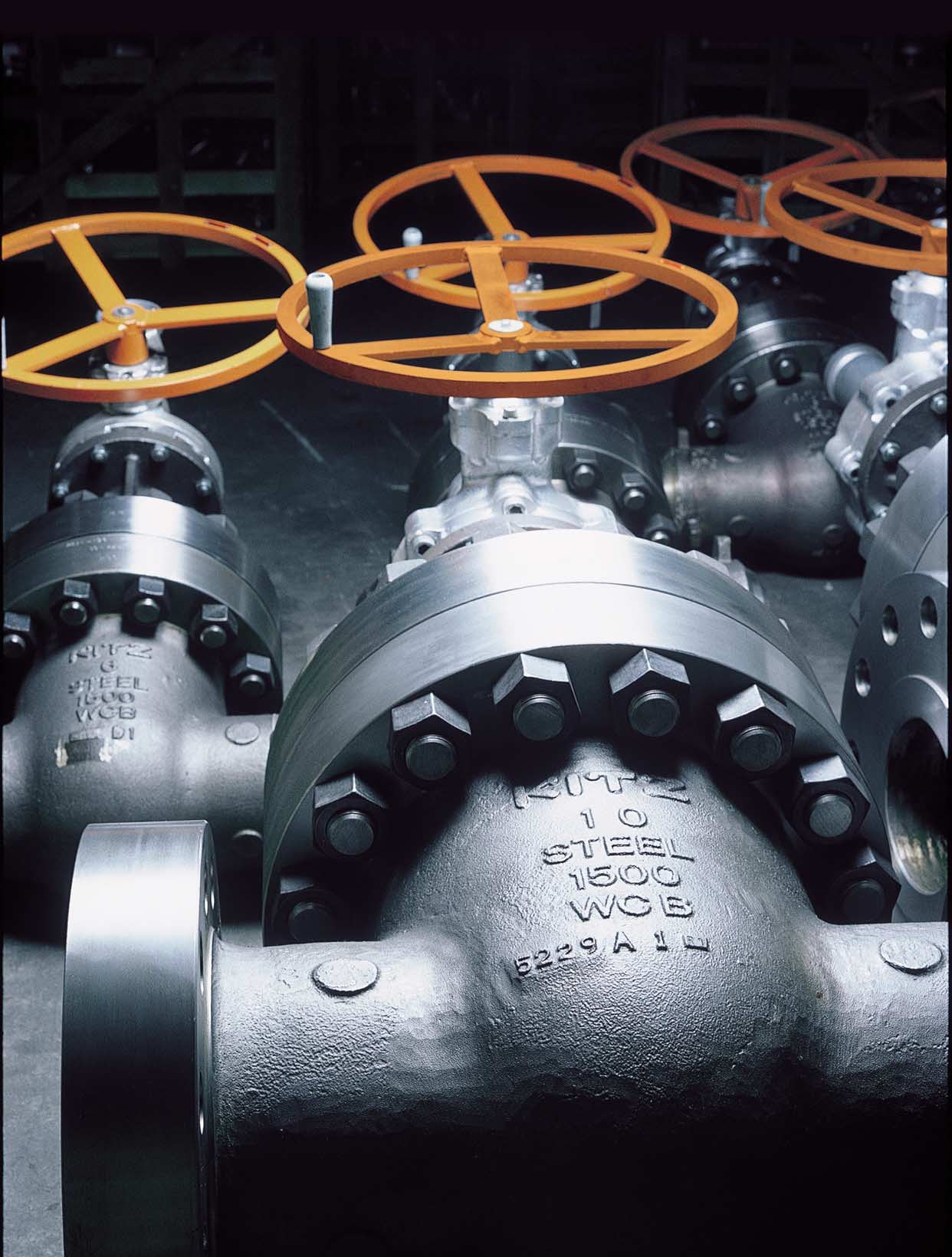

NPS 2 - 64
(DN 50 - 1600)
ASME Classes
150 - 1500
Flanged
Features and benefits
● Universal trim: 13Cr stem, wedge in CA 15 or 13Cr faced, and CoCr alloy seat API Trim 8 suitable for applications up to 850°F (454°C).
● Seat face CoCr alloy hardfaced, ground and lapped to a mirror finish.
● Flexible wedge with low center stem wedge contact, in solid CA15 (13Cr)or hardfaced with 13Cr, SS 316, Monel or CoCr alloy. Wedge is ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage. A CoCr alloy hardfaced CF8M wedge is also available.
● Non-rotating stem with precision Acme threads and burnished finish. Double Acme for faster operation.
● Body and bonnet joint accurately machined.
● Body and bonnet castings are precision machined. One-piece bonnet up to NPS 12 (DN 300) for better alignment and fewer parts.
● Flanges: ASME Classes 150–300: 1⁄16” raised face.
ASME Classes 600–1500: 1⁄4” raised face.
Finish 125–250 AARH for all valves.
● Rotating stem nut is Austenitic ductile iron Gr. D-2C renewable in line (as shown). Thrust bearings are supplied as follows: ASME Classes 150–300: NPS 10–12 (DN 250–300), 1 bearing (top),
NPS 16 (DN 400) and up, two bearings,
ASME Classes 600–1500: NPS 6 (DN 150) and up..

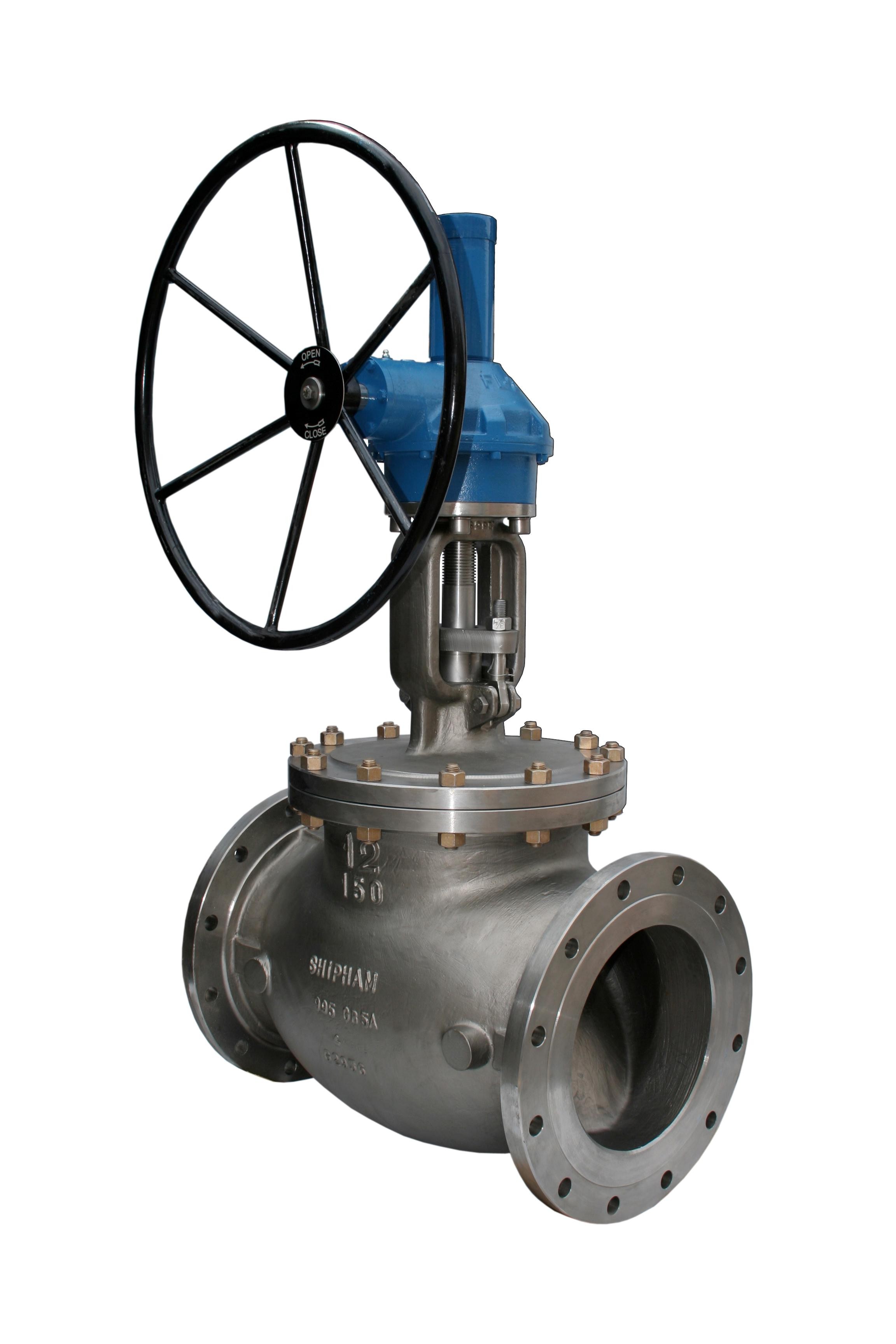

NPS 2 - 24
(DN 50 - 600)
ASME Classes
150 - 1500
Flanged
Features and benefits
● Non-rotating stem with precision Acme threads and burnished finish. Valve suitable for horizontal installation.
● Universal trim. 13Cr stem, 13Cr faced disc, and CoCr alloy faced seats API Trim 8 suitable for service up to 850°F (454°C).
● Seat face CoCr alloy hard faced, ground, and lapped to a mirror finish. Conical seat machined to 8 RMS.
● Tapered disc.
Body guided disc accurately mates the hard faced surface of the disc with the surface of the seat, hard faced with 13Cr, CoCr alloy, SS 316, or Monel, ground and lapped with seat.
● Disc in SS 316 hard faced with CoCr alloy also available. NPS 2–6 (DN 50–150) valves may have solid CA15 (13Cr) discs.
● Body and bonnet Castings are precision machined. One-piece bonnet for better alignment, fewer parts.
● Stuffing box finish to 63 RMS or better.
● Body and bonnet joint accurately machined. Fully enclosed gasket.
● Gland has two-piece construction for easy alignment.
● Flanges:
ASME Classes 150–300: 1⁄16” raised face.
ASME Classes 600–1500: 1⁄4” raised face.
Finish 125–250 AARH for all valves.
NPS 2 - 48
(DN 50 - 1200)
ASME Classes
150 - 1500
Flanged
Features and benefits
● Body and cover: Precision machined castings.
Exclusive: Disc shaft does not penetrate body.
● Body and cover joint: Accurately machined,
fully-enclosed gasket.
● Disc: Robust one-piece construction to withstand the severe shock of check valve service. Hardfaced with 13Cr, CoCr alloy, SS 316, or Monel, ground and lapped to a mirror finish. Sizes NPS 2–6 (DN 50–150) may have solid CA 15 (13Cr) disc. SS 316 disc with CoCr alloy facing also available.
● Disc assembly: Non-rotating disc is fastened securely to disc hanger with a lock nut and cotter pin. Disc hanger is supported on a sturdy disc carrier hinge pin of excellent bearing qualities. All parts are accessible from top for easy servicing.
● Flanges:
ASME Classes 150–300: 1⁄16” raised face.
ASME Classes 600–1500: 1⁄4” raised face.
Finish 125–250 AARH for all valves.
- Size range(s)
- NPS 2 - 64
(DN 50 - 1600)
- Pressure rating
- ASME Classes
150 - 1500
- Standard connections
- Flanged
Features and benefits
- Universal trim: 13Cr stem, wedge in CA 15 or 13Cr faced, and CoCr alloy seat API Trim 8 suitable for applications up to 850°F (454°C).
- Seat face CoCr alloy hardfaced, ground and lapped to a mirror finish.
- Flexible wedge with low center stem wedge contact, in solid CA15 (13Cr)or hardfaced with 13Cr, SS 316, Monel or CoCr alloy. Wedge is ground and lapped to a mirror finish and tightly guided to prevent dragging and seat damage. A CoCr alloy hardfaced CF8M wedge is also available.
- Non-rotating stem with precision Acme threads and burnished finish. Double Acme for faster operation.
- Body and bonnet joint accurately machined.
- Body and bonnet castings are precision machined. One-piece bonnet up to NPS 12 (DN 300) for better alignment and fewer parts.
- Flanges: ASME Classes 150–300: 1⁄16” raised face.
ASME Classes 600–1500: 1⁄4” raised face.
Finish 125–250 AARH for all valves.
- Rotating stem nut is Austenitic ductile iron Gr. D-2C renewable in line (as shown). Thrust bearings are supplied as follows: ASME Classes 150–300: NPS 10–12 (DN 250–300), 1 bearing (top),
NPS 16 (DN 400) and up, two bearings,
ASME Classes 600–1500: NPS 6 (DN 150) and up.
