SPECTACLES, SPACERS, PADDLES, ORRIFICE

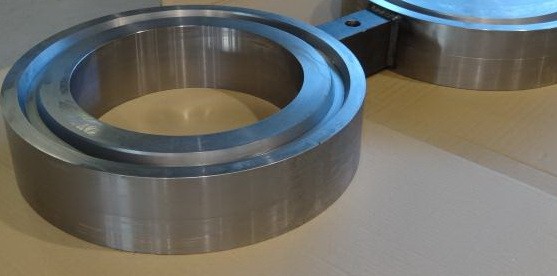

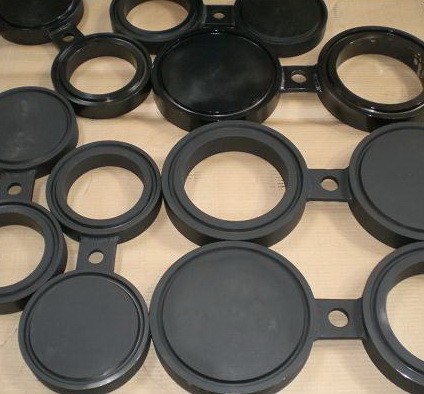

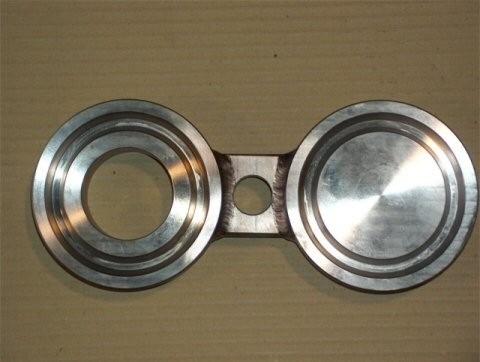

Spectacle Blind (Figure 8)

Spacer

Paddle

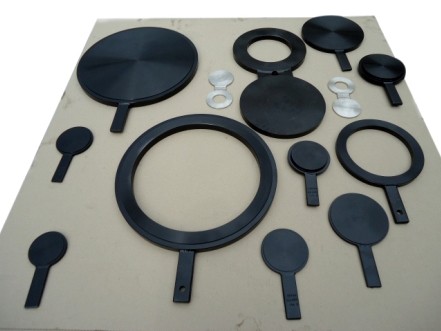

Spacer & Paddle

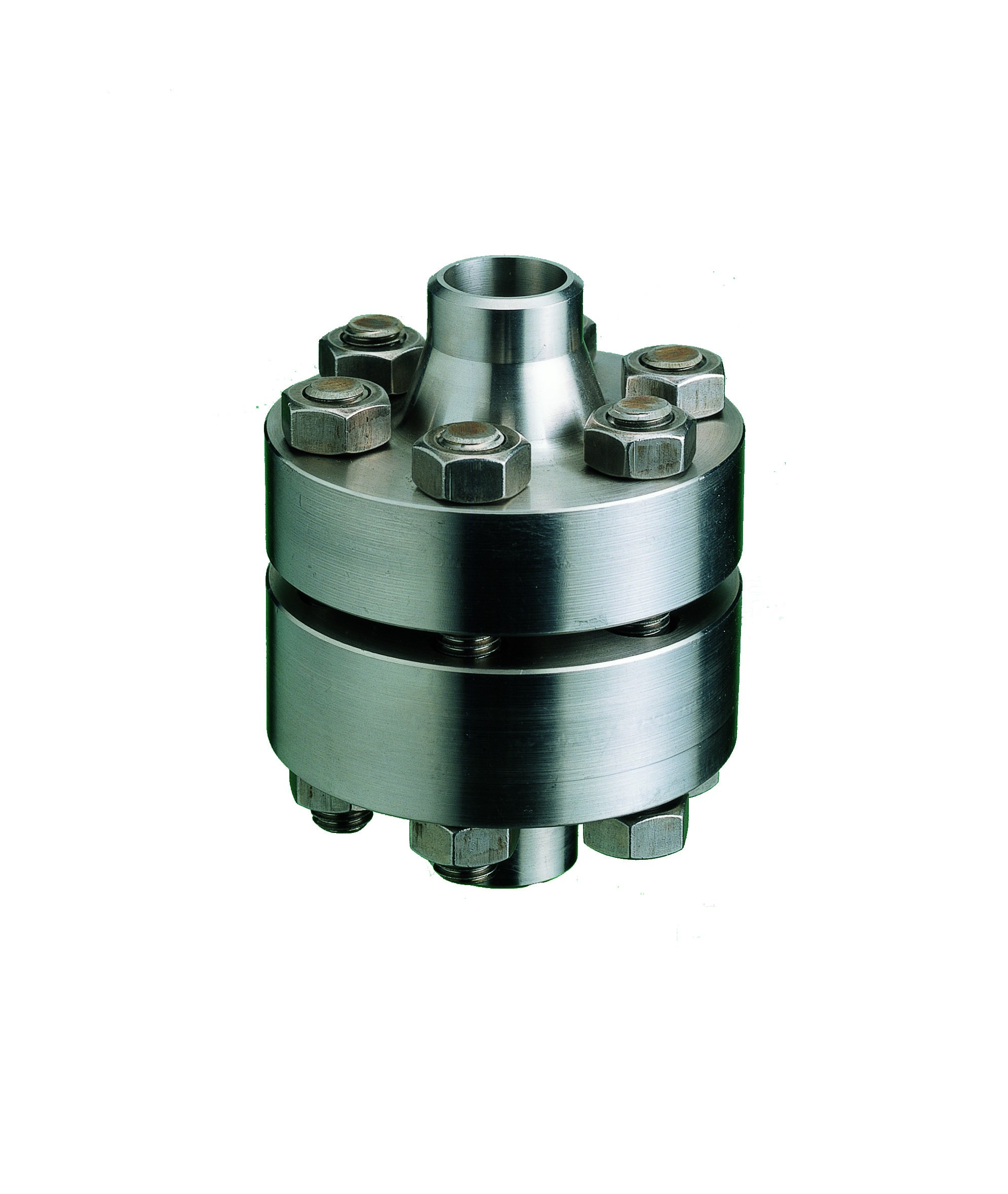

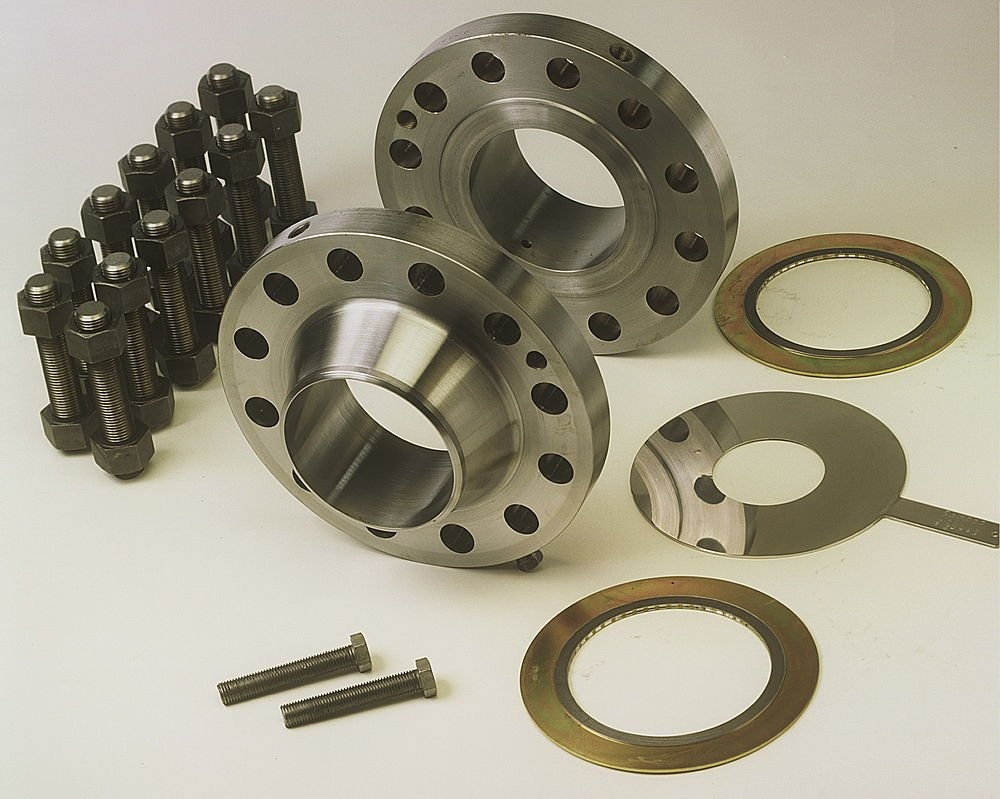

Orifice Flanges

Materials:

Carbon steel

Low temperature carbon steel

High yield carbon steel

Low alloy steel

Stainless steel

Duplex-Superduplex

Nickel Alloys (Inconel)

Cu/Ni

Titanium

Specialty Alloys

ASME B.16.5

ASME B.16.47 (A/B Series)

ASME B.16.48

ASME B.16.36

Classes:

150 lbs up to 2500 lbs

Sizes:

1/2" up to 60" (for sizes out of the ASME B.16.5 or B16.47 Standard we have the capability to design and manufacture any kind of flange based on each particular working conditions, all our designs are supported with calculations).

Features:

International standards (BS, CSA, AFNOR, …)

International boiler regulations (IBR, PED…)

NACE Service Flanges for corrosive services

Stringent chemical compositions

Schedules:

All

Joint faces:

RF / RTJ / FF
